OUR PRODUCTS

HUSILONG linear ceiling consists of various types of models. Depending on the design and application, the modules vary between 100mm to 300mm and some of the models even have the flexibility of combining the different modules together. Metrial thickness varies from 0.60mm to 0.70mm, also available in other thickness upon request. Units are made of aluminium in perforated or unperforated, in lengths of up to 5000mm long. All unit models are coted with electrostatics power coating with wide range of RAL colour available for selection. Standard perforation patterns comes with 1.8mm holes at 5mm centre to centre, achieving an open area of 20.5%. Total weight of ceiling for all models including accessories is approximately 5kg/m2

OUR PRODUCTS

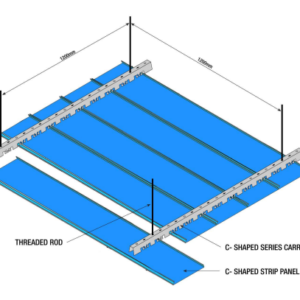

C-Shaped Strip Ceiling

100C, 150C, 200C, 300C The C-Series closed ceiling system could be in any singular module or combinations of each other which provides flexibility of choice and smooth appearance after installation. Suspension: The panel carrier accommodate all modules and comes with locking clips to prevent wind uplift which is suitable for exterior application. "C" type edge trimmer provides neatly trim off for perimeter cut panel.

read mores

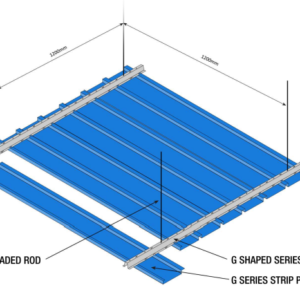

G-Shaped Strip Ceiling

100G, 150G, 200G, 300G The G-Series ceiling system consists of box shaped panels with a groove line between which provides easy installation of simple modules or combination panels Suspension The standard carrier accomodate the choice of 100mm, 200mm, 300mm or mixed combination. "C" type edge trimmer provides neatly trim off for perimeter cut panel.

read mores

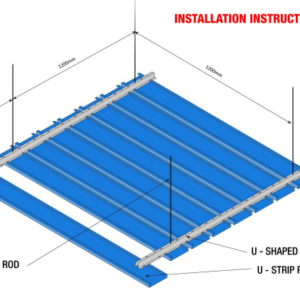

U-Shaped Strip Ceiling

80U, 130U, 180U, 280U This Multi-Panel System consist of box shaped panels in varying width possibility to create design with different width and height in one ceiling. The 20mm joint on between panels can be filled with U-shape joint profile. Suspension The panel carrier accommodate all multiple modules and flexible carrier are available for creating curved ceilings

read mores

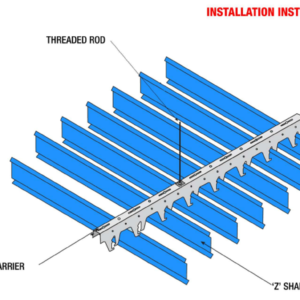

Screen Ceiling

Vertical screen visually provides single directional of varying height with opening gap at 100mm interval. Panels are roll-formed in "Z" shapes for rigidity and visibility comfort. Suspension The standard carrier of 100mm interval produce in lack power coated finishing.

read mores

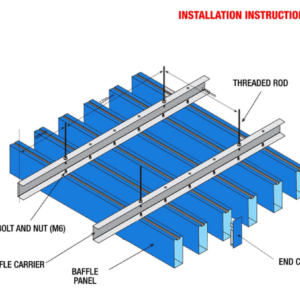

Baffle Ceiling

Baffle one-directional visual screen produces on extruded I roll form aluminum hollow section beams of module size and patterns for variety design concepts. Powder coated to choice of finishes colour. End cover are provided to cover the hollow section and to provide a smooth appearance. Suspension: The "C" Carrier in standard of 100mm gap could produce in different interval distance upon request for greater flexibility. Comes in black power coated finish.

read mores

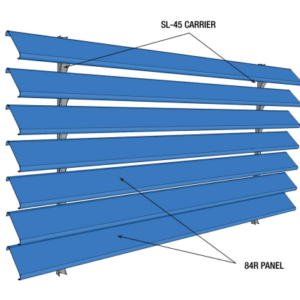

84R Sun Screen Louver

Baffle one-directional visual screen produces on extruded I roll form aluminum hollow section beams of module size and patterns for variety design concepts. Powder coated to choice of finishes colour. End cover are provided to cover the hollow section and to provide a smooth appearance. Suspension: The "C" Carrier in standard of 100mm gap could produce in different interval distance upon request for greater flexibility. Comes in black power coated finish.

read mores
